Docker私有镜像仓库Harbor

## Harbor介绍
Harbor 是为企业用户设计的开源镜像仓库项目，包括了权限管理(RBAC)、LDAP、审计、安全漏洞扫描、镜像验真、管理界面、自我注册、HA等企业必需的功能，同时针对中国用户的特点，设计镜像复制和中文支持等功能。

官网：https://goharbor.io/

## Harbor安装部署
可以准备台新的虚拟机：docker02 10.0.0.200 2核4G

### 1.harbor安装的环境要求
安装Harbor必须有docker环境和docker-compose环境
```
yum install -y docker-ce
yum install -y docker-compose
```

### 2.解压harbor安装包

```
[root@docker02 ~]# tar xf harbor-offline-installer-v1.9.0-rc1.tgz
[root@docker02 ~/harbor]# ll
total 605144
-rw-r--r-- 1 root root 619632806 Sep  4  2019 harbor.v1.9.0.tar.gz
-rw-r--r-- 1 root root      5805 Sep  4  2019 harbor.yml
-rwxr-xr-x 1 root root      5088 Sep  4  2019 install.sh
-rw-r--r-- 1 root root     11347 Sep  4  2019 LICENSE
-rwxr-xr-x 1 root root      1748 Sep  4  2019 prepare

# harbor.yml //docker-compose的编排文件，有点像tower的Playbook
```

### 3.修改harbor配置

```
[root@docker02 ~/harbor]# vim harbor.yml
hostname: 10.0.0.200
harbor_admin_password: Harbor12345
```

### 4.执行安装脚本

```
[root@docker02 ~/harbor]# ./install.sh
```

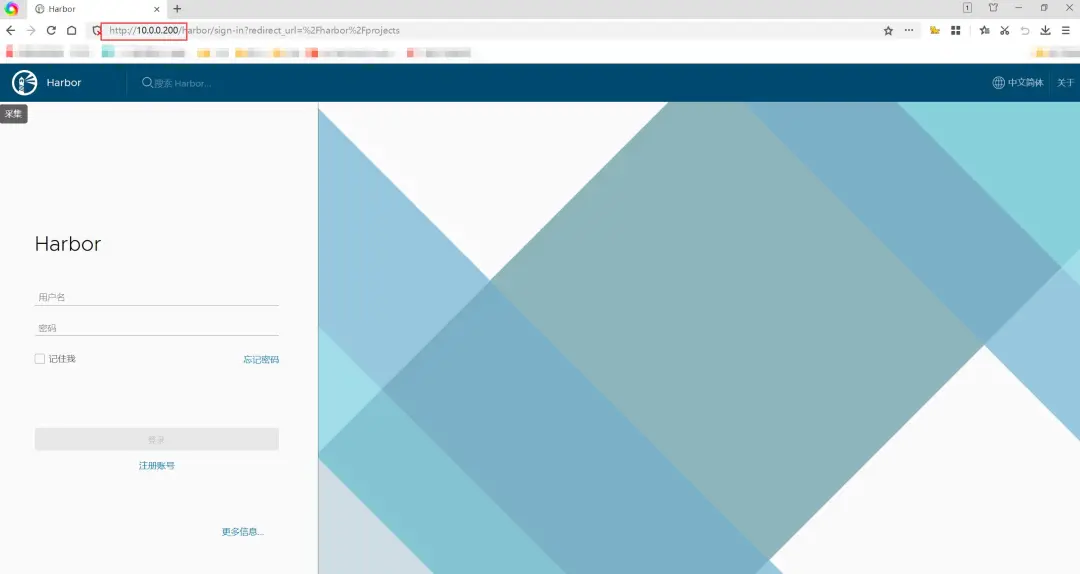

### 6.浏览器访问http://192.168.1.229:1818/

```
用户名admin
密码Harbor12345
```

![](/media/202412/2024-12-16_093709_7950870.5887159973465667.png)

```
[root@docker02 ~]# docker images //看下，拉了一堆镜像，都是harbor要用的
REPOSITORY                     TAG                       IMAGE ID       CREATED       SIZE
goharbor/chartmuseum-photon     v0.9.0-v1.9.0             47c00be3913e   4 years ago   130MB
goharbor/harbor-migrator       v1.9.0                     9826462ead7c   4 years ago   363MB
goharbor/redis-photon           v1.9.0                     9796fe9032f1   4 years ago   108MB
...

[root@docker02 ~]# docker ps //也起了一堆容器，而且你重启docker后可以开容自启
...

[root@docker02 ~]# cd harbor //也多出来一些东西
[root@docker02 ~/harbor]# ll
total 605152
drwxr-xr-x 3 root root        20 Jan  3 14:15 common
-rw-r--r-- 1 root root      5285 Jan  3 14:15 docker-compose.yml #//这个就是harbor的docker-compose文件
-rw-r--r-- 1 root root 619632806 Sep  4  2019 harbor.v1.9.0.tar.gz
-rw-r--r-- 1 root root      5799 Jan  3 14:12 harbor.yml
-rwxr-xr-x 1 root root      5088 Sep  4  2019 install.sh
-rw-r--r-- 1 root root     11347 Sep  4  2019 LICENSE
-rwxr-xr-x 1 root root      1748 Sep  4  2019 prepare
```

### 重启机器后开启harbor的命令

```
[root@docker02 ~/harbor]# docker-compose up -d   //在启动脚本里可以看到
```

## Harbor的使用

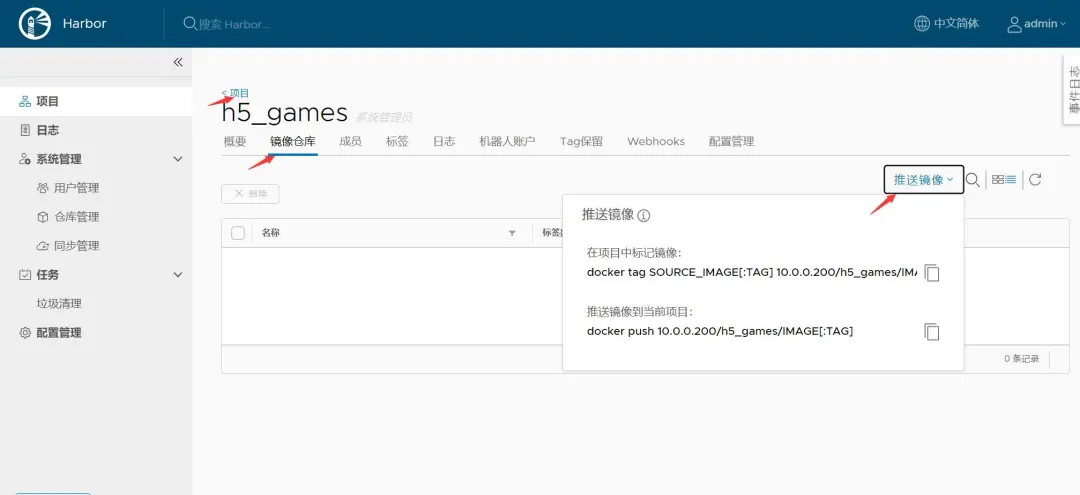

### harbor新建项目

新建一个h5_games项目，在里面可以看到相关推送镜像的命令。

![](/media/202412/2024-12-16_093946_1660760.42395697571530644.png)

### 在harbor中上传镜像

例：将上节docker01机器构建的镜像上传至harbor

### 1.修改镜像名称
### 查看镜像

```
[root@docker01 ~]# docker images
REPOSITORY                     TAG       IMAGE ID       CREATED         SIZE
nginx                          c7_v3     b61e011c7a89   28 hours ago   289MB
```

### 给镜像改名
会生成一个新的镜像，与原镜像同一个ID，是一样的。原来的可以删掉

```
[root@docker01 ~]# docker tag nginx:c7_v3 10.0.0.200/h5_games/nginx:c7_v3
[root@docker01 ~]# docker images
REPOSITORY                     TAG       IMAGE ID       CREATED         SIZE
10.0.0.200/h5_games/nginx       c7_v3     88b3d5a6d73f   2 hours ago     289MB
nginx                           c7_v3     88b3d5a6d73f   2 hours ago     289MB
```

### 命名规则

照着上面截图命名即可：
```
harbor服务器地址/项目名称/镜像名称:标签
10.0.0.200/h5_games/nginx:c7_v3
```

# 2.修改docker配置文件，信任harbor仓库地址

```
[root@docker01 /etc/docker]# vim daemon.json
{
 "bip": "192.168.10.1/24",
 "registry-mirrors": ["https://pgz00k39.mirror.aliyuncs.com"],
 "insecure-registries": ["http://10.0.0.200"]
}
[root@docker01 ~]# systemctl restart docker
```

### 3.登录harbor

```
[root@docker01 ~]# docker login 10.0.0.200
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded
```

### 4.推送镜像

```
[root@docker01 ~]# docker push 10.0.0.200/h5_games/nginx:c7_v3
The push refers to repository [10.0.0.200/h5_games/nginx]
cc5163efebe5: Pushed
dff3e2c393d5: Pushed
174f56854903: Pushed
c7_v3: digest: sha256:c1dd2312005598b49a1c2071ad86f45cd084eb46ffe3b2cc378417957f07fd1a size: 953

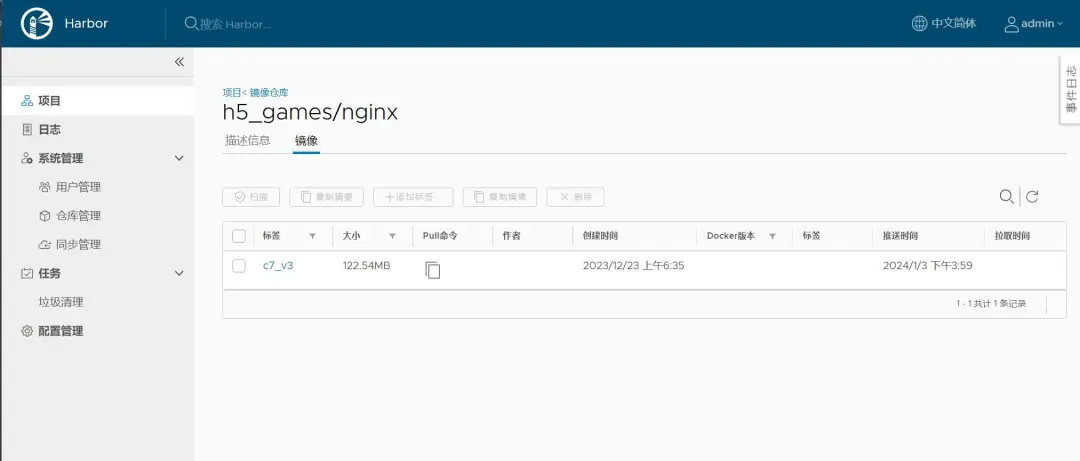

ps：每一层都有ID，其中有一个就是centos:7的层
```

![](/media/202412/2024-12-16_094211_5670250.015874295130397065.png)

### 拉取镜像到harbor本机
直接拉报错

```
[root@docker02 ~]# docker pull 10.0.0.200/app/web:v1
Error response from daemon: Get "https://10.0.0.200/v2/": dial tcp 10.0.0.200:443: connect: connection refused

[root@docker02 ~]# cd /etc/docker
[root@docker02 /etc/docker]# ll
total 0
[root@docker02 /etc/docker]# vim daemon.json
{
 "bip": "192.168.10.1/24",
 "registry-mirrors": ["https://pgz00k39.mirror.aliyuncs.com"],
 "insecure-registries": ["http://10.0.0.200"]
}
[root@docker02 /etc/docker]# systemctl restart docker
[root@docker02 ~/harbor]# docker-compose up -d

要登录下才行
[root@docker02 ~/harbor]# docker login 10.0.0.200
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

[root@docker02 ~/harbor]# docker pull 10.0.0.200/app/web:v1
```
## 部署的详情:

```
虚拟机: DockerImages
http://192.168.1.229:1818/
用户名admin
密码Harbor12345
```
